Product Overview
Application Conditions: Service temperature ranging from 800℃ to 1050℃, operating pressure between 0.2MPa and 4MPa.
Atmosphere Inside Tubes: Methanol, natural gas, steam.
Common Specifications
Outer Diameter: 100–300mm
Wall Thickness: 5–15mm (tube section)
Length: ≤ 6400mm
Inner Bore Finish: Ra ≤ 3.2μm (internal control standard: 1.6μm)
Bayberry Particle Layer Thickness: ≤ 0.8mm
Service Life: > 15 years
Complete Supporting Components Available：

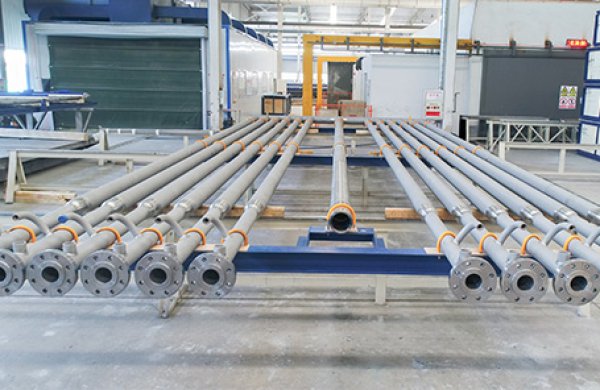

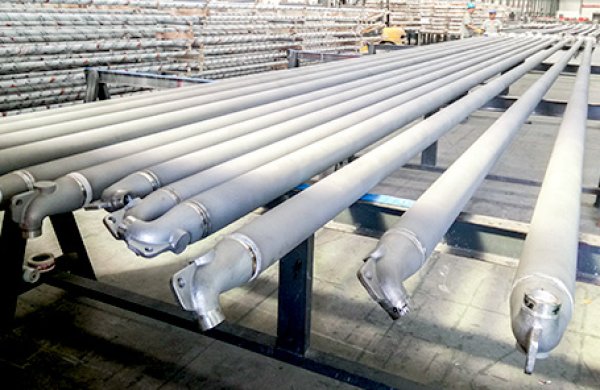

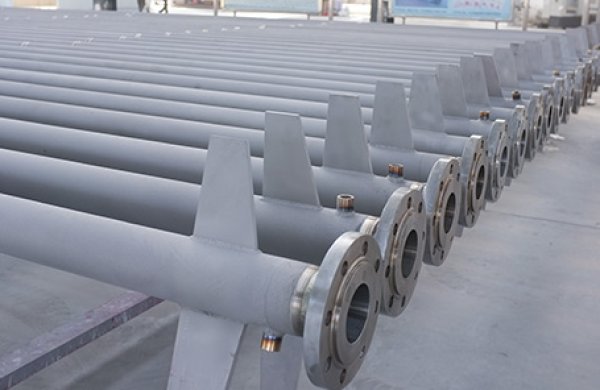

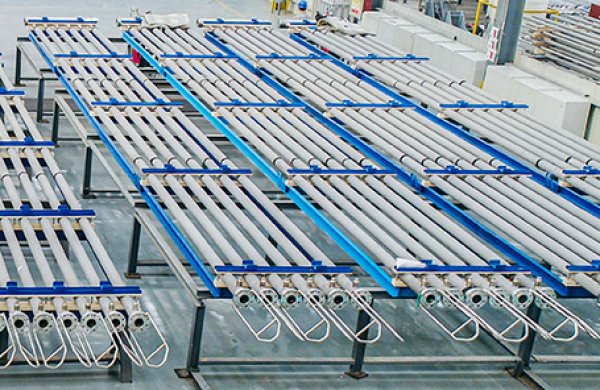

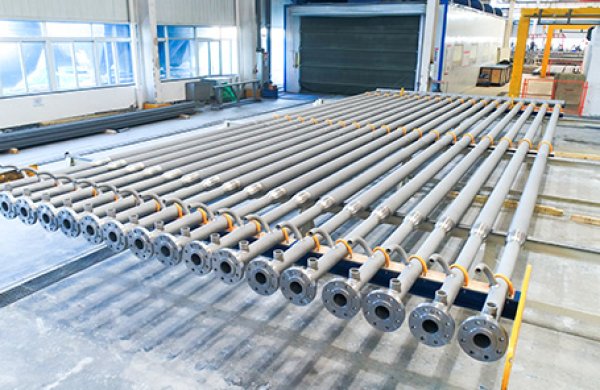

Centrifugally cast tubes, reducer tubes, flanges, shaft lugs, pigtail tubes, header pipes, plugs, pipe fittings, thermometer sockets.
